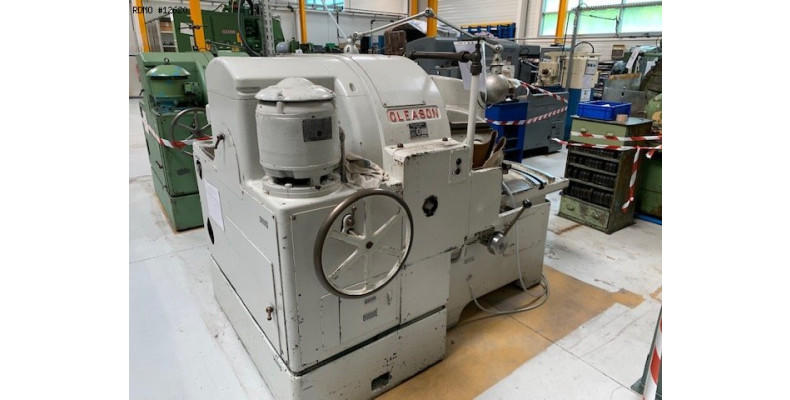

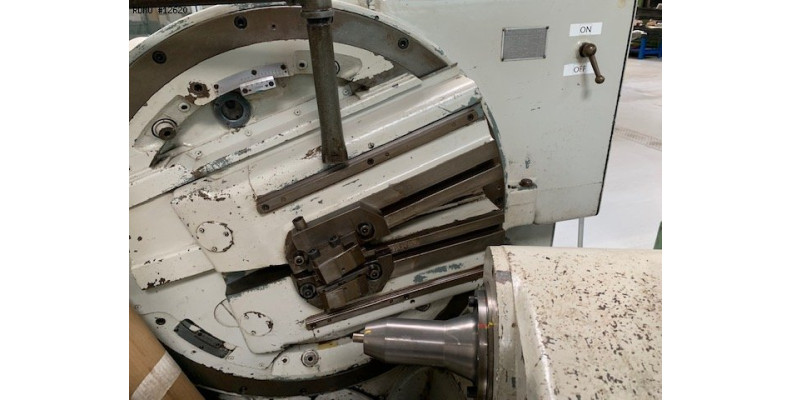

Marque : Gleason
Modèle : 14
Année :
N° Série : 24277
Marque : Gleason
Modèle : 14
Année :
N° Série : 24277

Caractéristiques & Equipement

Caractéristiques
TECHNICAL DETAILS

Capacity

Cone distance:

-Max.: 805 mm

-Min.: 0

Pitch angle (max.) shafts at 90°: 84°18'

Pitch angle (min.): 5°42'

Extreme ratio: 10:1

Diametral pitch (coarsest): 8.5 Mod.

Index range: 5 to 100 inclusive and most numbers to 200



Pitch diameter:

-Ratio: 10 : 1

--Face: 25 mm

--Cone distance: 283 mm

--Largest pitch diameter of gear: 565 mm

--Largest pitch diameter of pinion: 57 mm



--Face: 51 mm

--Cone distance: 295 mm

--Largest pitch diameter of gear: 591 mm

--Largest pitch diameter of pinion: 59 mm



--Face: 89 mm

--Cone distance: 305 mm

--Largest pitch diameter of gear: 610 mm

--Largest pitch diameter of pinion: 64 mm



-Ratio: 1 : 1

--Face: 25 mm

--Cone distance: 283 mm

--Largest pitch diameter of gear: 400 mm

--Largest pitch diameter of pinion: 400 mm



--Face: 51 mm

--Cone distance: 295 mm

--Largest pitch diameter of gear: 419 mm

--Largest pitch diameter of pinion: 419 mm



--Face: 89 mm

--Cone distance: 305 mm

--Largest pitch diameter of gear: 432 mm

--Largest pitch diameter of pinion: 432 mm



Work spindle

Diameter of taper hole at large end: 100 mm

Taper per foot: 15 mm

Depth of taper: 150 mm

Diameter of hole through: 78 mm

Spindle nose to machine center: 64 mm to 381 mm



Speeds and feeds

Cutter speeds (strokes per minute):

-60 cycle: 64 to 495

-50 cycle: 51 to 420

Feeds (seconds per tooth):

-60 cycle: 10 to 131

-50 cycle: 11 to 128



Electrical equipment

Main motor: 3 HP, 1800 rpm, 1800 rpm (60 cycle), 1500 rpm (50 cycle)

Hydraulic pump motor: 1.5 HP, 1200 rpm (60 cycle), 1000 rpm (50 cycle)

Cutting oil pump motor: 0.5 HP, 3600 rpm (60 cycle), 3000 rpm (50 cycle)



- Floor space: 1420 x 410 [mm]

- Net weight: 7850 [kg]
